Few DIY home improvements deliver as immediate an upgrade to daily domestic life as eliminating slamming kitchen and bathroom cabinet doors. In millions of American homes built throughout the 1980s, 1990s, and 2000s, solid wood face-frame cabinets remain in outstanding structural condition, yet their outdated semi-concealed mechanical hinges cause cabinet doors to bang loudly against wooden frames upon closing. Homeowners often believe that achieving smooth, whisper-quiet soft-close functionality requires tearing out functional cabinetry or purchasing custom-ordered replacement doors. In reality, modern hardware engineering allows you to easily retrofit compact European-style concealed soft-close hinges directly into your existing doors and face frames. However, successful installation hinges on precise geometric measurements rather than guesswork. To purchase the correct hardware and achieve perfectly flush, professional reveals, you must master three vital dimensions: identifying your exact door overlay, verifying 35mm cup hole depth and edge bore setback, and balancing 3-way cam adjustment screws after mounting.
Understanding Cabinet Construction: Face-Frame vs. Frameless and Hinge Geometry
Before ordering replacement hinges, you must identify the structural anatomy of your cabinet boxes. American residential construction predominantly utilizes two distinct cabinet configurations: traditional face-frame cabinets and modern European-style frameless (full-access) cabinets.
In standard face-frame cabinetry, the front perimeter of the 1/2-inch or 3/4-inch plywood cabinet box is framed with 1.5-inch to 2-inch wide solid hardwood stiles and rails. The hinges mount directly to the inside edge or front face of this solid wooden frame. In frameless cabinetry, there is no decorative front face frame; cabinet doors mount directly to the 3/4-inch interior side walls of the cabinet box. Modern compact soft-close hinges are specifically engineered to hook over or screw flush against 3/4-inch face frames without requiring bulky interior mounting plates that encroach into valuable storage space.
Concealed hinges function through two interconnected components: the hinge cup, which nests into a round mortise bored into the backside of the cabinet door, and the hinge arm, which fastens to the cabinet face frame. When upgrading your cabinetry, you can explore our previous guide on painting cabinets without brush marks to refresh door finishes before installing sleek, concealed hardware. As detailed in WoodworkerHelp’s cabinet hinge overlay and bore chart, European-style concealed cup hinges rely on standard 35mm diameter cups bored 11.5mm to 12.5mm deep, with standard edge setbacks between 2.5mm and 6mm. Matching your door’s profile to these exact physical specs guarantees smooth, bind-free travel throughout a standard 105-degree to 110-degree opening swing.
The Crucial Overlay Measurement: How to Calculate Door Lap Over the Frame
The single most common mistake homeowners make when retrofitting soft-close hinges is guessing their door overlay. The term overlay refers to the exact distance that a cabinet door extends past the inside edge of the cabinet opening and rests over the face-frame stile on the hinged side.

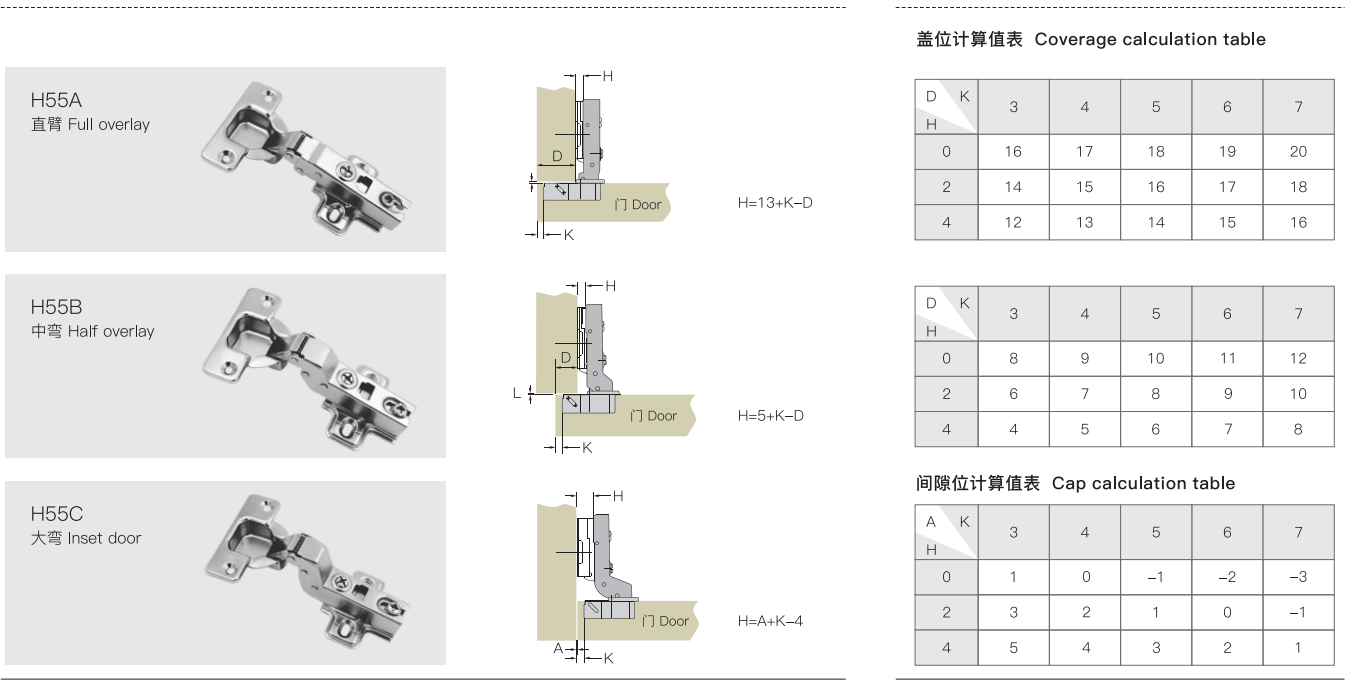

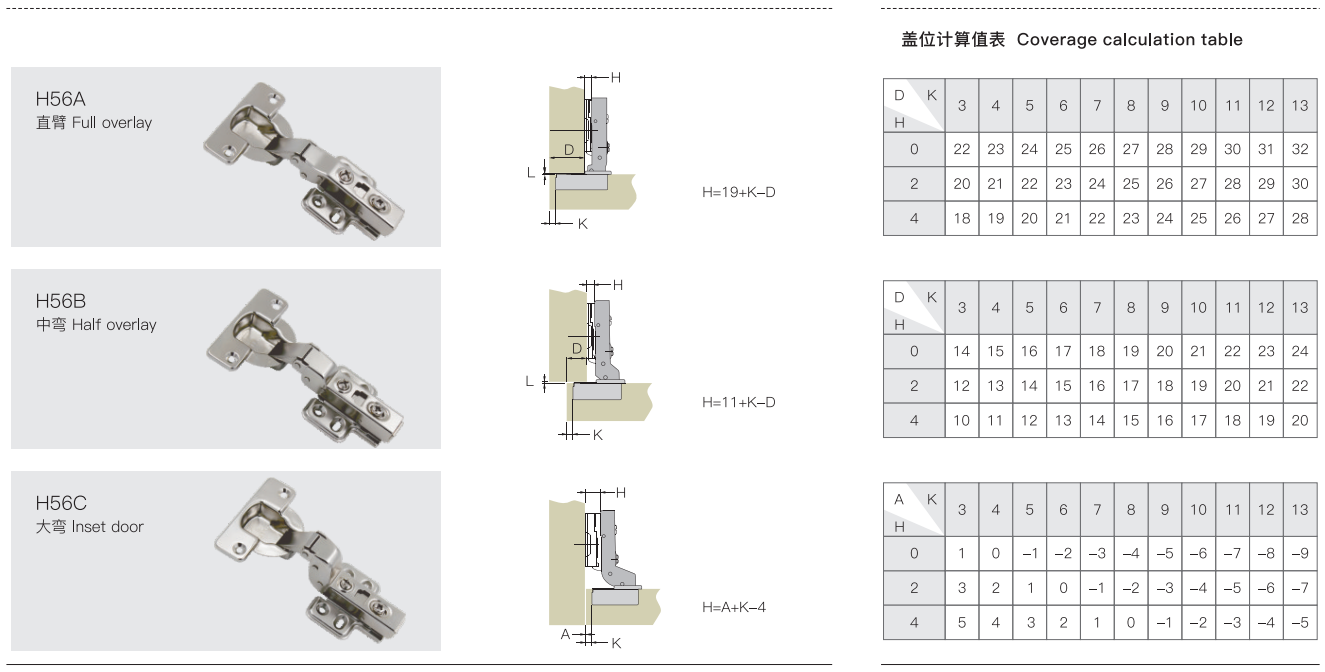

Concealed compact hinges are manufactured in fixed overlay increments. Common American residential overlays include 1/4-inch, 3/8-inch, 1/2-inch, 3/4-inch, 1-inch, 1-1/4-inch, and 1-3/8-inch. Ordering a 1-1/4-inch overlay hinge for a door designed for a 1/2-inch overlay will cause the door to bind aggressively against the adjacent door or overhang into the walkway. Conversely, undersizing the overlay leaves the interior cabinet opening partially exposed when the door is closed.
To accurately measure your cabinet overlay without specialized tools, use the proven painter’s tape method:
- Close the Cabinet Door: Ensure the door sits in its natural resting position on the cabinet face frame.
- Apply a Tape Guide: Take a small strip of blue painter’s masking tape and apply it vertically along the cabinet face frame, running it tight and flush against the outer edge of the closed door on the hinged side.
- Open the Door: Swing the cabinet door open to 90 degrees. You will now see the blue tape line remaining on the solid face frame.
- Measure the Distance: Hook a precision steel ruler or rigid tape measure onto the inside edge of the face frame stile and measure straight across to the inner edge of your blue tape guide. That exact distance is your door overlay. In roughly 70 percent of standard builder-grade American face-frame kitchens, that measurement is exactly 1/2 inch. In custom homes with larger doors covering nearly the entire frame, the measurement is typically 1-1/4 inches.
If you are measuring an entire run of doors, use the mathematical subtraction formula: measure the total door width, subtract the cabinet frame opening width, and divide the remaining number by 2 (for single doors, or divide by 2 after subtracting the center reveal for paired doors). Once your overlay is established, check hardware hole centers using our practical guide on measuring cabinet handles for existing holes to ensure new pulls and knobs coordinate harmoniously with your new hinge layout.
Drilling and Verifying the 35mm Hinge Cup: Depth, Edge Bore, and Stile Width
Most factory-built cabinet doors prepared for European concealed hinges already feature pre-bored circular cup holes on their rear faces. However, when transitioning from exterior butterfly or semi-wrap hinges to concealed soft-close hinges, you will need to bore new 35mm cup mortises using a dedicated Forstner drill bit and an alignment jig.
Adhere strictly to these machining parameters to avoid damaging delicate hardwood or MDF door profiles:

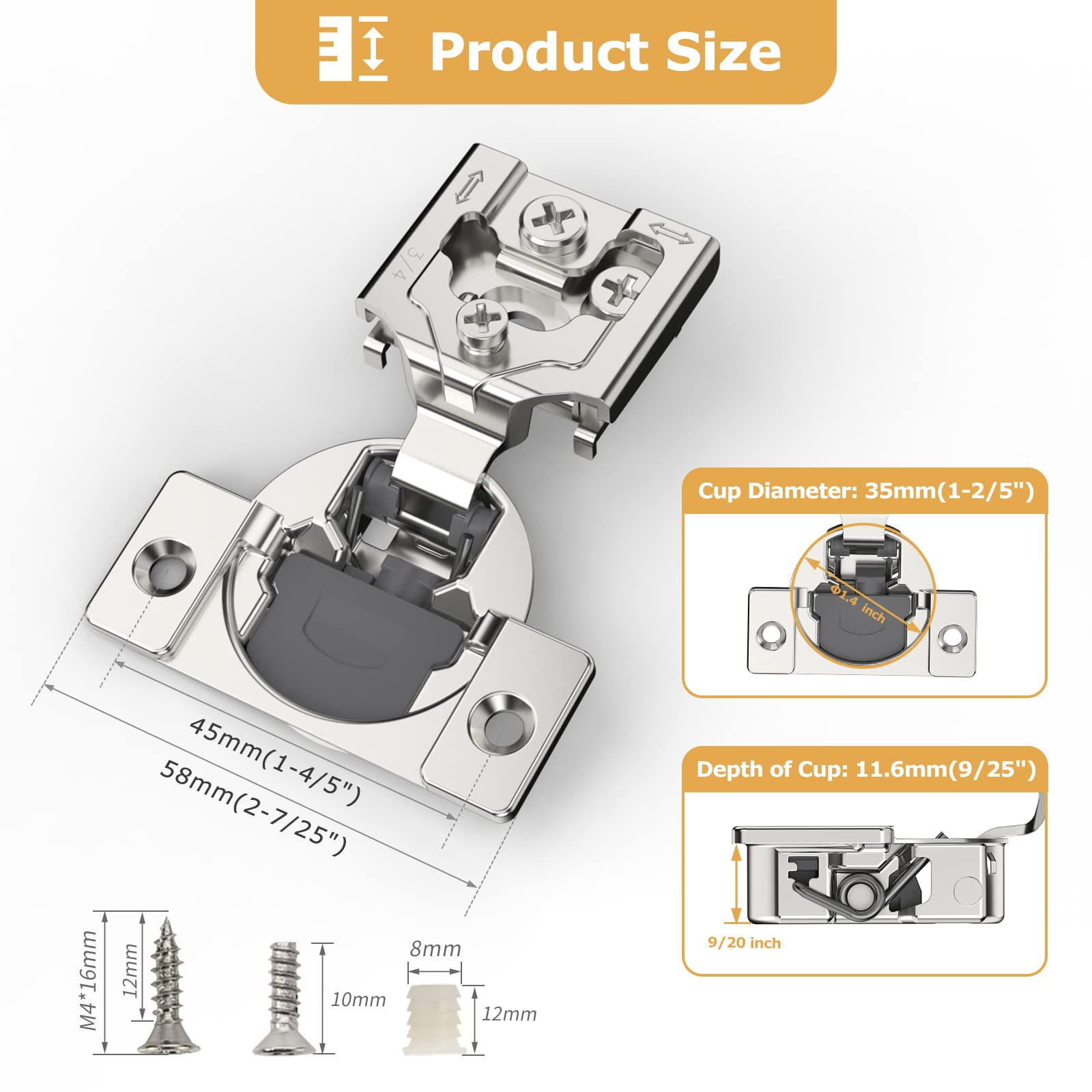

- Cup Diameter: The international industry standard cup diameter is 35 millimeters (approximately 1-3/8 inches). Never attempt to bore this mortise with a spade or paddle bit, which causes severe tearout and wobbles off-center; always use a sharp, spurred 35mm carbide Forstner bit.
- Cup Depth: As outlined in the technical specifications from Rockler Woodworking and Hardware’s Blum compact hinge guide, compact soft-close hinges feature shallow cups requiring a bore depth of 7/16 inch (11.43mm) to 1/2 inch (12.7mm). Standard American residential cabinet doors measure 3/4 inch thick. Drilling deeper than 1/2 inch leaves less than 1/4 inch of face material, creating the risk that the pilot spur penetrates through the finished front face of your cabinet door. Always clamp a mechanical drill stop collar onto your bit to prevent over-drilling.
- Edge Bore Distance (Tab Distance): The distance from the outer edge of the cabinet door to the beginning edge of the 35mm hole is known as the tab distance (typically 3mm to 6mm, resulting in a center-to-edge distance of 20.5mm to 22.5mm). Maintaining this wood margin ensures that the thin edge of the door does not splinter or blow out under load.
- Minimum Stile Width: Shaker-style and raised-panel cabinet doors feature narrow perimeter frame stiles surrounding a central recessed panel. A standard 35mm cup hole requires a minimum stile width of 2 inches (50mm) to ensure the cup hole does not intersect the groove holding the center panel. If your stiles measure under 1-3/4 inches, compact face-frame hinges cannot be seated, and you must utilize specialized narrow-stile hinges or retrofit face-frame piston dampers instead.
Mounting and Securing Hinges to the Face Frame
Once your hinge cups are verified or bored, insert the hinges into the back of the doors. Use a straightedge or framing square laid across the backs of both hinge bodies to ensure the hinge arms sit exactly 90 degrees perpendicular to the door edge. Fasten the hinge cups into the door using the manufacturer-supplied 5/8-inch wood screws. If old screw holes from previous hardware are stripped or loose, follow our proven tips on using wood filler and toothpicks for screw hole repairs before driving new hardware.
To mount the door assembly to your cabinet box:
- Position the Door at Specified Reveal: Hold the door against the cabinet opening, verifying that the top and bottom reveals (vertical gaps) match neighboring cabinets. A quick trick is placing 1/8-inch wooden spacers or plastic shims under the door bottom to maintain height consistency.
- Anchor the Frame Screws: Compact face-frame hinges feature a wrap-around or edge-mount flange that rests against the face frame. Drive the primary mounting screw into the oblong center slot on the mounting plate. Do not drive it completely tight; leave it snug enough to hold the door upright while permitting vertical micro-adjustments.
- Test Swing and Clearances: Carefully swing the door open and shut. Check that the door does not rub against the cabinet face frame or bind against an adjoining door. If an adjacent passage door rubs its jamb elsewhere in your home, consult our troubleshooting guide on fixing an interior door rubbing the frame for complementary hinge shimming and alignment methods.
Mastering 3-Way Cam Adjustments: Height, Depth, and Side-to-Side Alignment

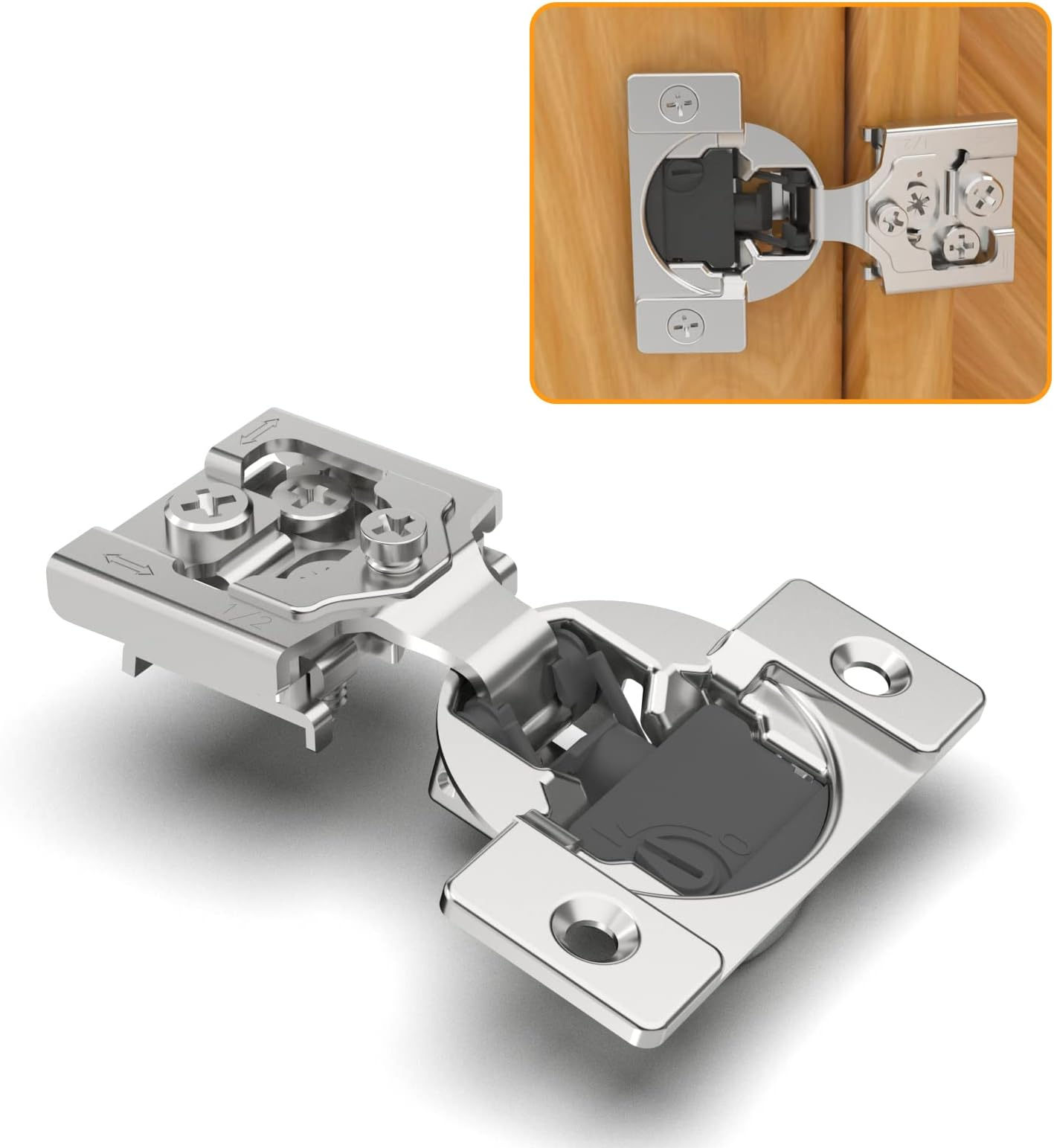

Premium soft-close hinges—such as Blum Compact BLUMOTION, Salice Silentia, and Grass Tec—are engineered with built-in three-dimensional eccentric cam screws. These allow homeowners to adjust door positioning with microscopic precision simply by turning a Phillips screwdriver:
- Depth Adjustment (In/Out): Located on the hinge body nearest the door cup. Turning this cam screw moves the door closer to or farther away from the cabinet face frame (typically +/- 1/16 inch). If the door sticks out from the cabinet or slaps loudly because the soft-close piston engages too late, turn the depth screw clockwise to draw the door tighter to the frame. If the door binds against the frame upon opening, turn it counter-clockwise.
- Side-to-Side Adjustment (Lateral / Reveal): Located on the hinge arm nearest the face frame. Turning this cam shifts the door left or right across the face of the opening. This adjustment is critical for establishing an even 1/8-inch vertical reveal between double doors and aligning the door edge parallel with the cabinet side stile.
- Vertical Height Adjustment (Up/Down): Enabled via the oblong mounting screw slot on the face-frame plate (or an independent vertical cam). Loosen the mounting screws on both top and bottom hinges slightly, tap the door up or down into plumb alignment with adjacent cabinet doors, and retighten firmly.
Soft-Close Damper Tension and Deactivation Switches
A common issue with compact soft-close hinges occurs on very small or lightweight cabinet doors (such as upper microwave cabinets or narrow spice pullouts). Because two hydraulic pistons exert damping resistance against a door with minimal mass, the door may close frustratingly slowly, taking 10 to 15 seconds to creep shut, or fail to latch completely.
Modern quality hinges solve this by integrating a manual deactivation switch directly into the hinge cup. If a small door takes excessive time to close, locate the tiny sliding switch on the bottom hinge and click it to the “off” position. This deactivates the hydraulic cylinder on the lower hinge while leaving the upper hinge fully active. The single soft-close mechanism easily handles the lightweight door, delivering a smooth, silent glide in a crisp 2 to 3 seconds without bouncing or hanging open.
By taking time to verify your cabinet overlay, maintaining proper 35mm cup bore depth, and systematically balancing your 3-way adjustment cams, you can completely transform your kitchen or bathroom cabinetry into a whisper-quiet, premium living space in a single afternoon.
