Replacing cabinet handles without drilling starts with the holes you already have, not the size of a handle in a photograph. Before ordering a matching set, make a short record of hole spacing, panel thickness and the space available around each pull. Then test one replacement. This guide is a measurement and buying checklist for a US home project, not a drilling guide or a promise that every handle is interchangeable.
Separate mounting size from the visible length

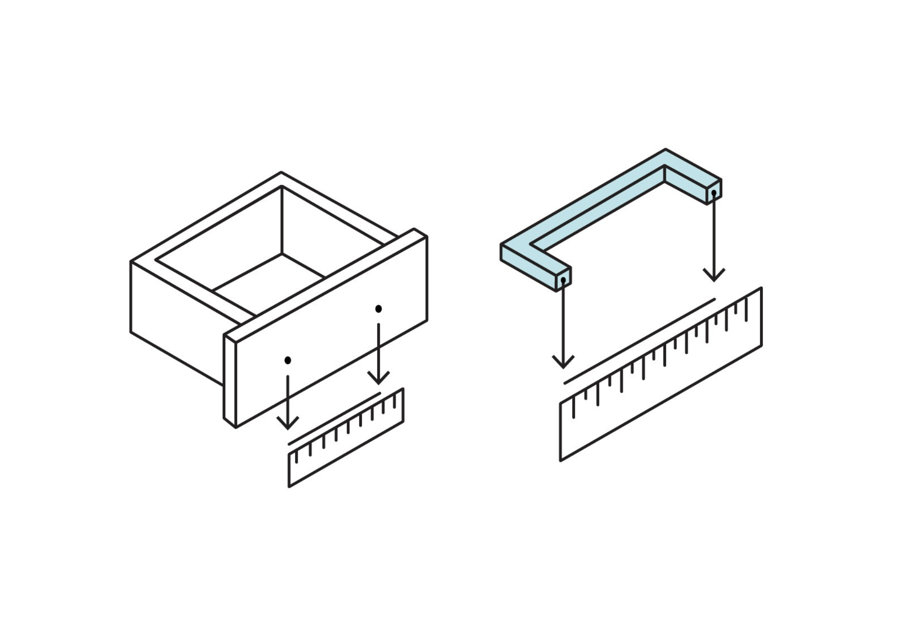

Liberty Hardware distinguishes overall length, measured along the complete pull, from center-to-center spacing, measured between its mounting screw holes. The second measurement determines whether a replacement can use an existing pair of holes.[4]
Write these as separate fields in your notes. A listing that says only “long cabinet handle” is not enough information. Look for a dimension drawing or a clearly labeled center-to-center specification. If you cannot find one, ask the seller before placing an order rather than estimating from a photo.
Start with one cabinet door and one drawer from each visibly different group. Do not assume a wide drawer, a narrow drawer and a pantry door use the same hardware. If your storage has no doors or drawer fronts, this is a different project: our no-sew cabinet curtain guide covers a separate approach for suitable open cabinets.
Measure a representative pull and label its location
Choose a location you can reach comfortably. Photograph the existing hardware from the front and the inside before removing anything. Keep the pull and its original screws together in a labeled container. If a fitting will not release normally, stop rather than forcing it or damaging the finish.

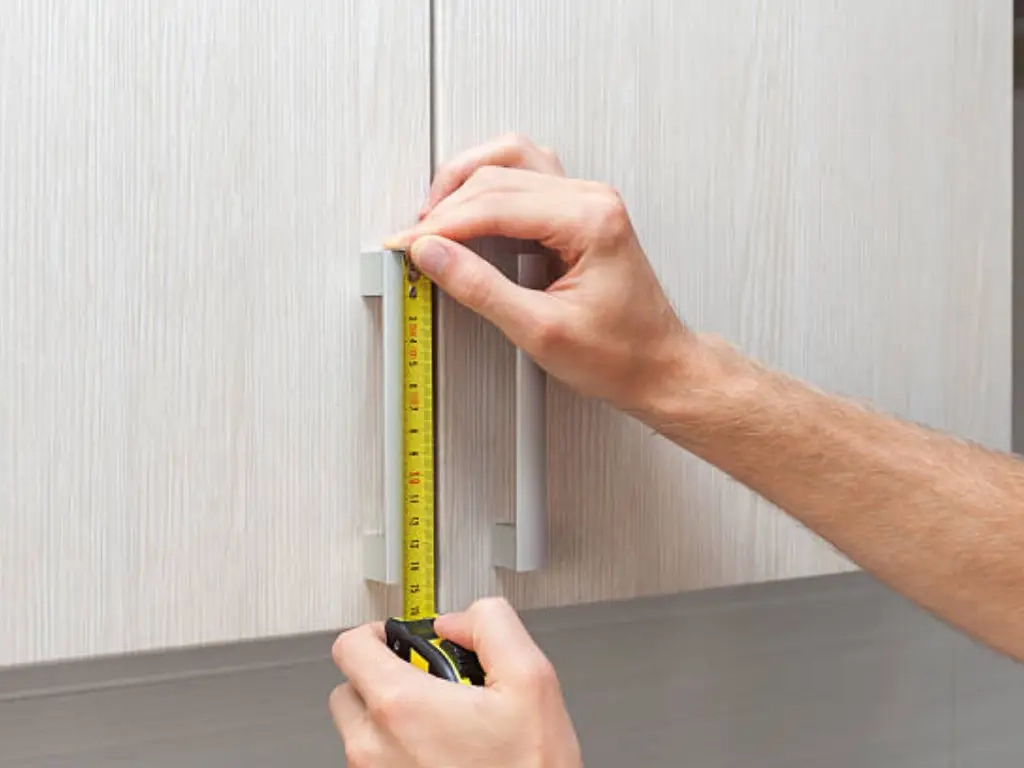

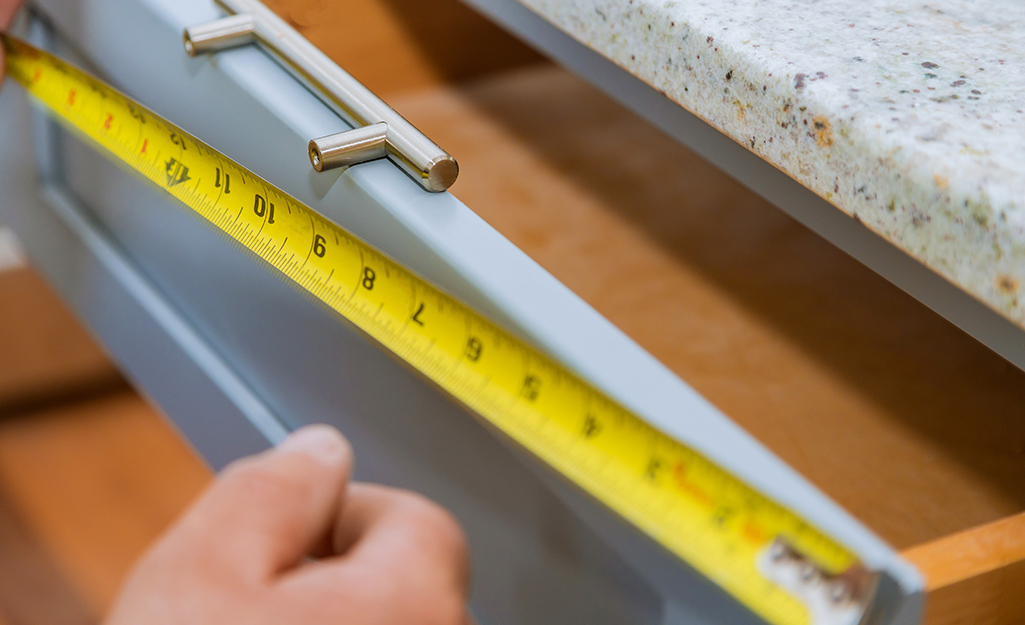

With the mounting holes visible, place a ruler across their centers and read the distance from the center of one hole to the center of the other. Repeat the reading. For a curved or decorative handle, do not follow the outside curve: you need the straight spacing between the mounting points.
If the hole edges are chipped, oversized or hard to locate, do not turn an uncertain reading into a purchase specification. Compare the removed pull’s mounting points, take a clear photograph with the ruler in view, and ask the supplier to help confirm the size. Mark that cabinet as “needs confirmation.” That is more useful than a confident but approximate number.
Keep inches and millimeters on the same worksheet
Record the unit beside every measurement. For example, a hypothetical three-inch hole pattern is 76.2 millimeters; it is not a 96-millimeter pattern. The example illustrates a unit conversion, not a permitted installation tolerance. Match the manufacturer’s stated mounting dimension and fit guidance, rather than treating nearby numbers as interchangeable.
A useful worksheet has one row per cabinet group: location, number of pieces, hole count, measured center spacing, overall handle length, panel thickness and any unresolved question. Keep the original reading even if you also add a converted value. If a product page mixes inches and millimeters, save the diagram with the product number so you can ask about any discrepancy.
For a single-hole knob, note that it uses one mounting location rather than a pair. Changing that layout to a conventional two-hole pull is not automatically a no-drill swap. Decide whether retaining the existing hole arrangement matters before narrowing the style options.
Check the footprint, grip and neighboring doors
A matching hole pattern is only the first check. Liberty recommends trying physical samples because photographs cannot establish hand clearance or comfort.[5] Treat the sample as a practical test rather than choosing solely by finish or advertised length.
Hold it in the intended position and compare the base with any marks left by the old hardware. Look at how far the handle extends beyond its mounting points. Will it sit neatly on the flat part of the drawer front? Is there enough room for your normal grip? Open adjacent doors and drawers slowly to check their paths before committing to a full set.
Use a second worksheet field for appearance. A pull can fit mechanically yet leave a visible outline where the old base sat. Decide whether that outline is acceptable, needs a different base shape or calls for a separate finish repair. Do not conceal that decision inside the phrase “the holes line up.”
Confirm screws separately from hole spacing
Measure the material the mounting screw must pass through at the actual hole, rather than assuming the thickness of an exposed edge represents the whole assembly. Keep door and drawer measurements separate. Ask the hardware supplier to confirm the required screw type and length for the selected pull.
Liberty’s screw guidance recommends screws at least one-quarter inch longer than the cabinet or drawer face thickness.[7] That is manufacturer guidance to check against the specific fitting, not permission to force any screw into any handle. A matching center spacing says nothing by itself about screw compatibility.
During a sample fit, follow the product’s directions. If a screw does not start normally, the handle stays loose or the base will not sit as intended, stop and check the parts. Do not use extra force, larger holes or improvised hardware to turn a failed trial into an apparently successful one.
If the spacing is unusual, compare alternatives before drilling
An adjustable pull may offer another route. Liberty’s Adjusta-Pull range includes products designed for existing holes, including nonstandard spacing, but its post and channel designs have different stated adjustment ranges.[6] Check the exact product rather than assuming every adjustable handle covers every pair of holes.
Compare three choices on paper: a fixed pull with the correct spacing, an adjustable model whose documented range includes your measurements, or a separate repair-and-redrill project. The last option changes the scope; it is not a no-drill replacement. If the cabinet belongs to a landlord, obtain permission before making permanent alterations.
Finish with one successful trial on each distinct cabinet group. Save the product number, verified dimensions, screw details and a photo of the fitted sample. Only then count the remaining pieces and order the set. A useful result is not merely a new finish: it is hardware that fits the existing holes, feels comfortable and works without an unplanned cabinet repair.
